Application of Bluetooth Serial Port Module Technology in NVR (Network Video Recorder) Systems

With the rapid development of intelligent security systems, the Network Video Recorder (NVR), as a core component, undertakes critical functions such as video capture, storage, playback, and management. To further enhance the usability and intelligence of NVRs, Bluetooth wireless communication technology is emerging as a new integration trend. This document outlines the typical application scenarios, technical advantages, and recommended solutions for integrating Bluetooth into NVRs.

Background

Traditionally, NVRs interact with users via network ports, HDMI, mice, and USB connections. This approach often leads to complex device connections, cumbersome debugging processes, and limited mobility for operators. Bluetooth, as a short-range wireless communication technology, offers features like low power consumption, low latency, high compatibility, and fast pairing, providing NVR systems with more flexible interaction methods and expanded capabilities.

Typical Application Scenarios for Bluetooth in NVRs

• Bluetooth Keyboard Connectivity: NVRs are frequently deployed in environments without a dedicated monitor. Connecting a wireless keyboard via Bluetooth enhances deployment flexibility and frees up USB ports.
• Mobile App Pairing and Commissioning: By connecting to a smartphone via Bluetooth, users can directly use an app for initial NVR configuration, Wi-Fi setup, and camera additions locally. This eliminates the need for a monitor or network cable, significantly improving installation efficiency.
• Bluetooth Peripheral Expansion: Integrating with devices such as access controllers, infrared remote controls, and identity authentication terminals via Bluetooth can extend the NVR's functionality with more intelligent interactive features.

Technical Advantages

Recommended Solution

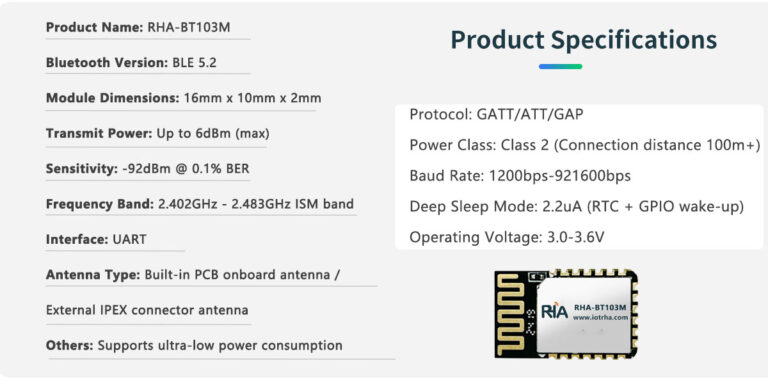

To ensure efficient and stable Bluetooth functionality in an NVR, it is recommended to select a Bluetooth module that supports both BLE (Bluetooth Low Energy) and HID (Human Interface Device) protocols. A prime example is the RHA-BT103M module from RHA Technology, which offers the following advantages:

• Compact Size & Bluetooth 5.2: Features a small form factor and supports Bluetooth 5.2 for strong compatibility.
• Built-in HID Protocol: Perfectly adapted for seamless integration with Bluetooth keyboards.
• BLE Communication: Enables rapid pairing and communication with mobile apps for tasks like Bluetooth-assisted network configuration or parameter settings.
• Master-Slave Dual Mode: Supports both master and slave roles to meet diverse peripheral connection requirements.
• UART Interface: Facilitates quick and easy integration with the NVR's main controller.

Conclusion

The integration of Bluetooth technology not only enhances the intelligence and convenience of NVRs but also opens up new possibilities for interaction within security systems. Looking ahead, the combination of Bluetooth and Wi-Fi, along with multi-mode communication, will further expand the NVR ecosystem, driving a comprehensive upgrade for smart security.

For technical specifications, testing protocols, or sample requests regarding Bluetooth modules for NVR applications, please feel free to contact us. We are dedicated to providing you with professional IoT connectivity solutions.
