Bluetooth Module Multi-Connection Solution: Enabling Smarter IoT Sensors

In today’s era of widespread adoption of smart devices, sensor technology has become the cornerstone of IoT development. From smart homes to healthcare, industrial automation to smart cities, sensor applications are ubiquitous.

However, as the number of devices continues to surge, the challenge of efficiently connecting and managing multiple sensors has grown. Bluetooth technology, particularly its multi-connection capabilities, is emerging as the key to overcoming this challenge.

Here, we introduce how the RHA Bluetooth module multi-connection solution can transform sensor connectivity.

Solution Overview

1. Traditional Sensor Data Transmission: Sensors typically transmit collected data to a main control device via wired connections, which then forwards it to display terminals for data visualization.
2. Pain Point: When sensor data needs to be transmitted to multiple devices (e.g., display terminals, mobile apps) and uploaded to the cloud, traditional wired connections fail to meet the requirements for real-time, multi-device synchronization. A high-efficiency wireless solution is necessary.

Implementation

Hardware and Technology

The RHA-BT101M BLE Bluetooth module supports multi-device connections, allowing simultaneous communication with up to 9 devices. It is ideal for synchronized sharing and transmission of sensor data.

Operational Steps:

1. Set Bluetooth Module to Command Mode: Configure the RHA-BT101M module by entering command mode with the following AT command: AT+TPMODE=0
2. Enable Multi-Connection Mode: Activate multi-connection mode using the command: AT+MULEN=1 This allows the module to connect with up to 9 devices.
3. Data Transmission: The main control device communicates with the RHA-BT101M via UART. Use the following command to send collected data to up to 9 connected Bluetooth devices: AT+GATTSEND Mobile apps receive data via Bluetooth and upload it to the cloud, enabling centralized management and analysis.

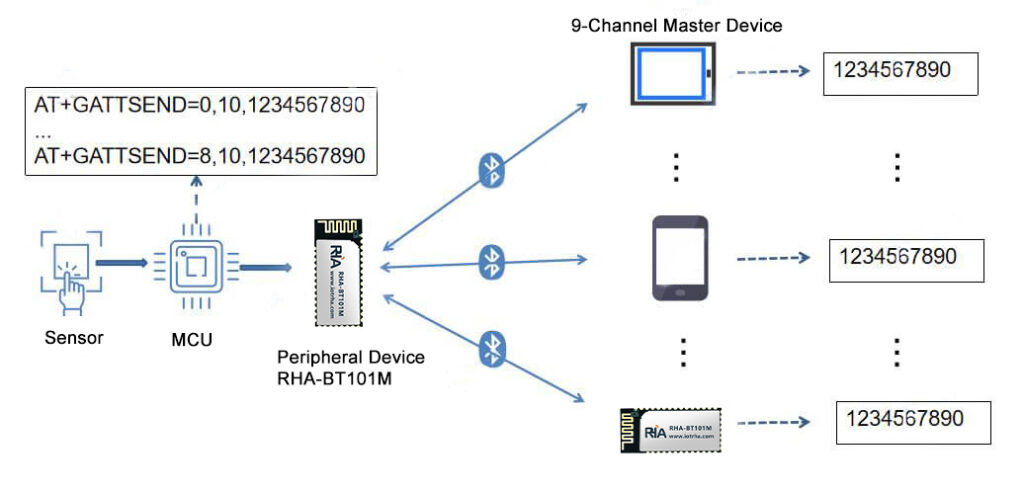

Application Block Diagram

Advantages

1. Support for Multiple Device Connections:
   • Simultaneous Connections: The RHA-BT101M module can connect with up to 9 devices, simplifying multi-device data synchronization.
2. Flexibility of Wireless Transmission:
   • No Wires, No Hassle: Bluetooth wireless transmission eliminates the limitations of wired connections, making it suitable for mobile scenarios such as wearables and portable health monitoring devices.
3. Scalability:
   • Modular Design: Based on a standard Bluetooth module, it’s easy to integrate and expand to accommodate more devices.
   • Simple Operation: Multi-device connection and data transmission are achieved with simple AT commands, reducing development complexity.
4. Data Synchronization and Sharing:
   • Real-time Data Synchronization: All devices can receive sensor data in real time, ensuring consistency, suitable for multi-point monitoring.
   • Cloud Upload Support: Data is received via the mobile app and uploaded to the cloud, enabling centralized management and analysis, ideal for remote monitoring and big data processing.

Application Scenarios

1. Industrial IoT (IoT): Multiple sensors simultaneously monitor equipment status or environmental parameters. Data is synchronized to monitoring devices or central systems via the Bluetooth multi-connection solution and uploaded to the cloud for analysis and alerting.
2. Smart Homes: Data from sensors such as temperature, humidity, and light levels is transmitted in real time to central controllers or display devices, enabling environmental data monitoring and sharing.
3. Health Monitoring and Wearables: Data from physiological parameter sensors is synchronized and transmitted to smartphones or other devices, uploaded to the cloud for real-time health data analysis and storage.
4. Environmental Monitoring Systems: Data from multiple sensors measuring air quality, water quality, etc., is transmitted to centralized devices for monitoring via the Bluetooth multi-connection solution and uploaded to servers for analysis.
5. Smart Agriculture: Data from soil moisture, temperature, and light sensors is transmitted to farm management systems, supporting precision agriculture management.

Future Prospects

These scenarios demonstrate the flexibility and scalability of the multi-connection solution in diverse contexts requiring efficient, synchronized, wireless data transmission.

As IoT technology evolves, the Bluetooth multi-connection solution for sensors will play an increasingly important role.

If you’re searching for a high-efficiency, low-power, and secure multi-connection solution for your sensors, the RHA Bluetooth module multi-connection solution is an excellent choice. Empower your products with this advanced technology and stand out in the wave of the smart era!
