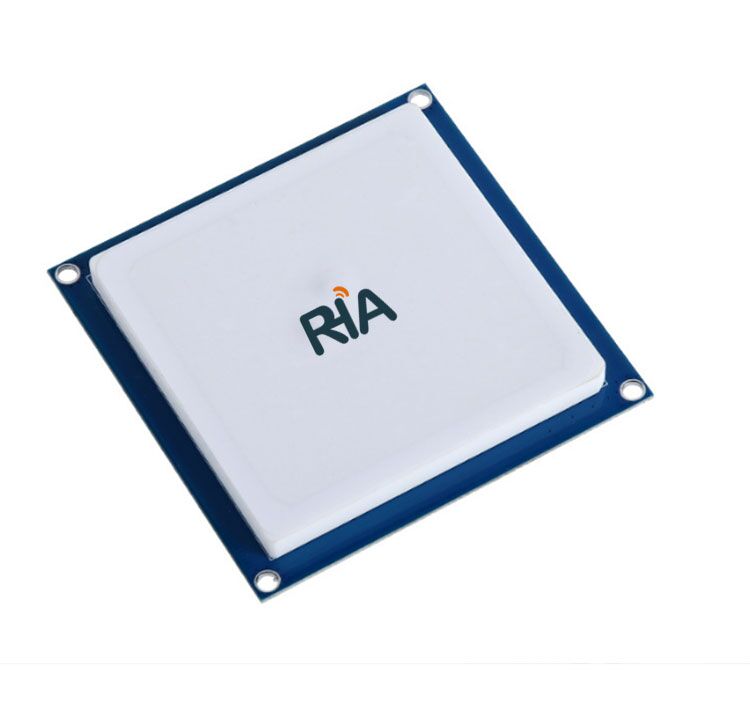

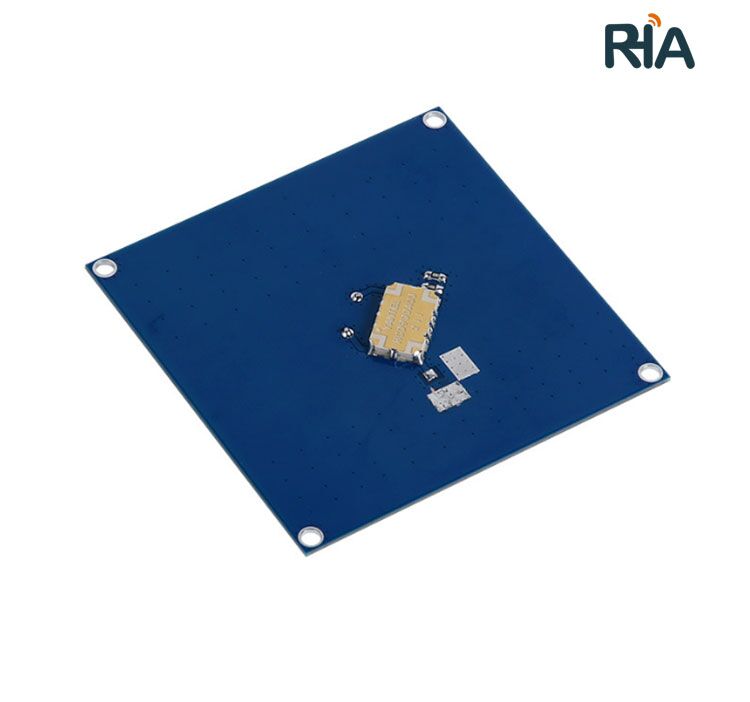

Figure 1: Front and back images of the 900M Built-in Ceramic Antenna (60)
The 900M Built-in Ceramic Antenna (60) is suitable for UHF band RFID handheld terminals, tablets, printing terminals, and other applications. This product features a dual-feed point circular polarization design, characterized by compact size, high gain, and low VSWR.
Table 1: Product parameter definitions for the 900M Built-in Ceramic Antenna (60)
| Product Model | RHA-9CA60 |
| Frequency Range (MHz) | 902MHz～928MHz or 865MHz～868MHz |
| Polarization Mode | Circular polarization |
| Gain (dBi) | ＞3dBi |
| Axial Ratio (dB) | ＜3dB |
| Impedance (Ω) | 50Ω |
| Voltage Standing Wave Ratio (VSWR) | ≤1.3:1 |
| Connector | SMA (customizable to IPX, MMCX, MCX, etc.) |
| Antenna Dimensions (mm) | 70*70*8mm (ceramic body 60*60*5mm) |
| Net Weight | 70g |
| Radiating Material | Silver |
| Color | Blue |
| Operating Temperature (°C) | -40°C ～＋85°C |
Figure 2: Voltage Standing Wave Ratio (VSWR) vs. Frequency Curve (American Standard)

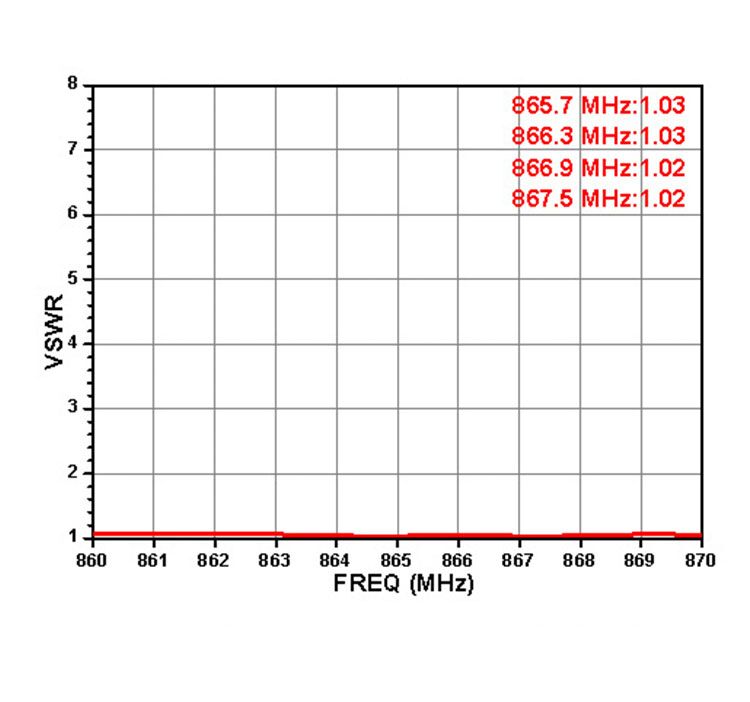

Figure 3: Voltage Standing Wave Ratio (VSWR) vs. Frequency Curve (European Standard)

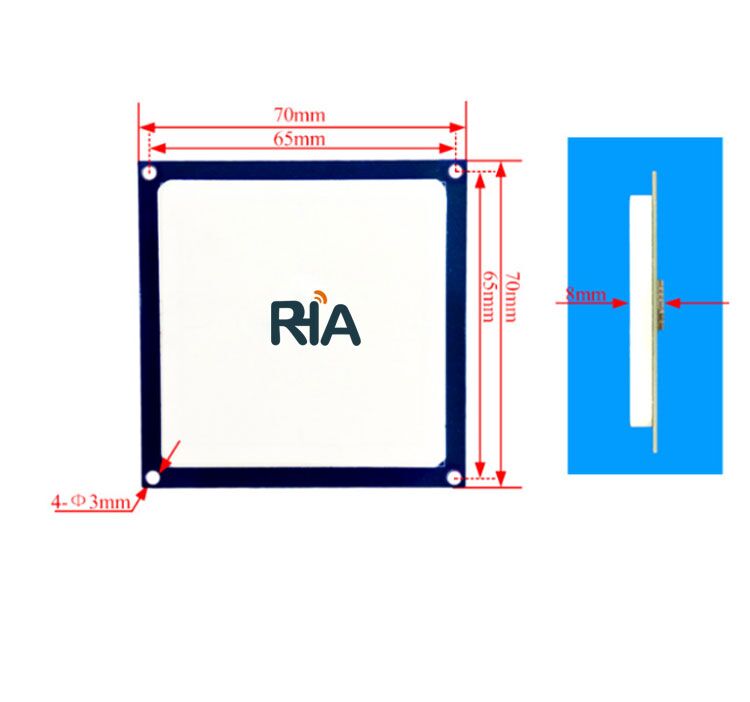

Figure 3: Dimensions of the 900M Built-in Ceramic Antenna (60), including length, width, positioning holes, and thickness
