IoTRHA RHA-500-RC016 UHF RFID Reader & Writer 16-Channel Module

Overview:

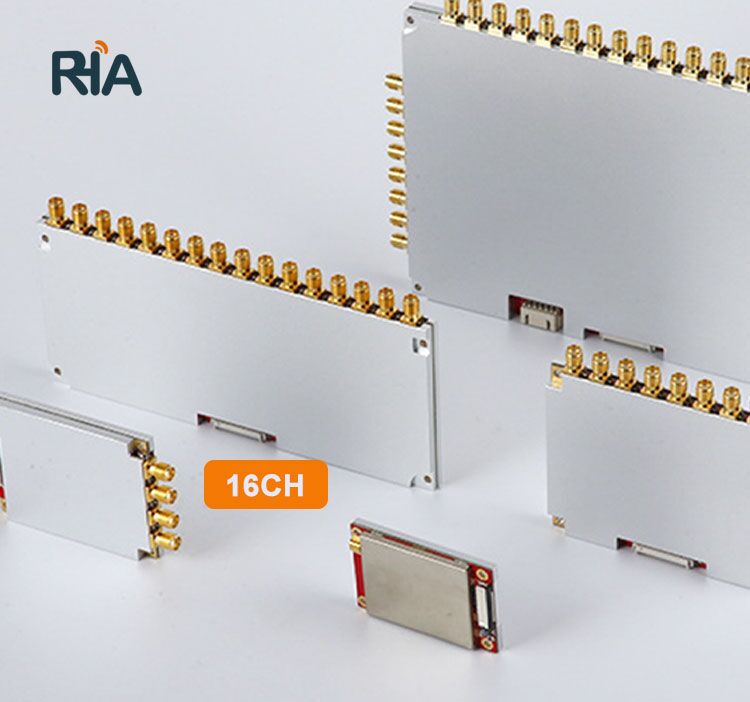

The IoTRHA UHF RFID reader&writer module series includes single/4/8/16/32 channels. These products are designed based on the high-performance Impinj R2000 UHF RFID chip. Utilizing the dynamic Q algorithm from Impinj and our independently developed "Adaptive Dynamic Q Anti-Collision Algorithm V3.0," we have significantly improved multi-tag reading performance. The more tags, the more evident the improvement. The module offers an output power range of 0-33dBm, with a stable reading distance of over 20 meters using a 9dBi circularly polarized antenna and over 30 meters with a 12dBi circularly polarized antenna. The IoTRHA UHF RFID reader&writer module series can be applied to UHF handheld devices, integrated machines, access control channels, smart cabinets, high-quality consumable cabinets, tool cabinets, clothing channels, archive cabinets, and other applications requiring antenna identification and reading.

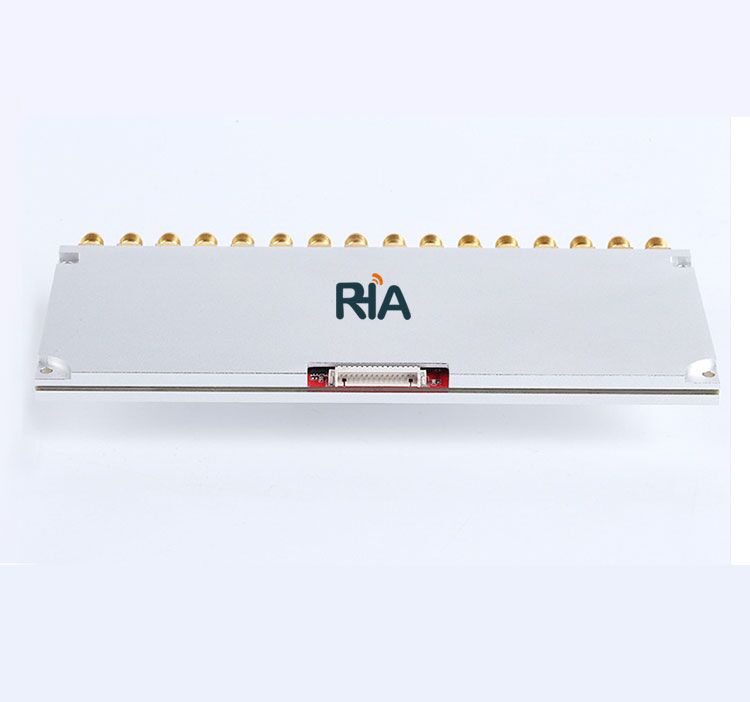

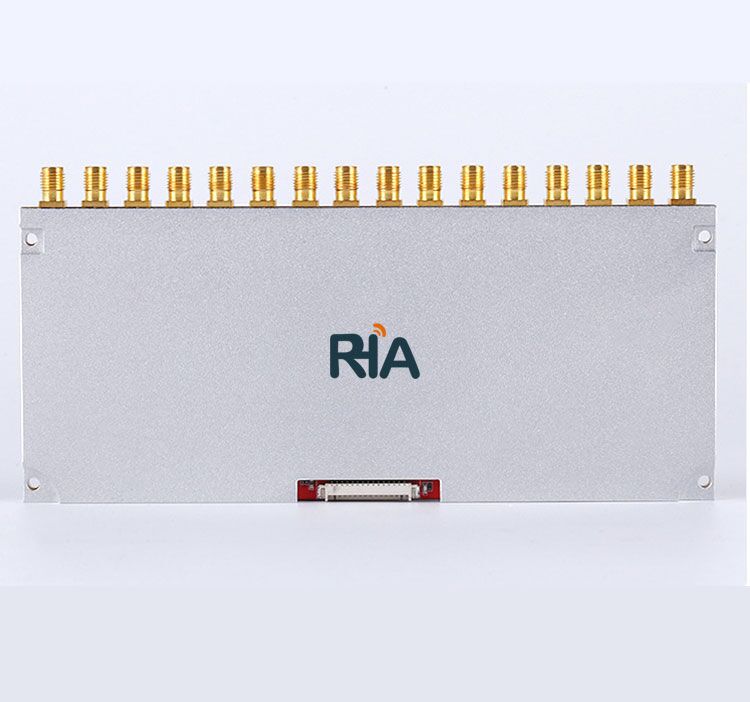

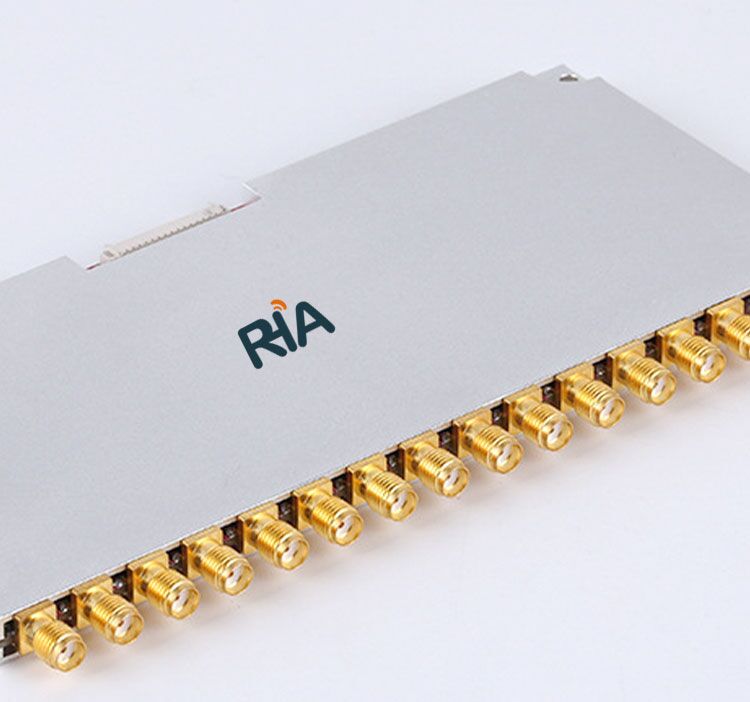

1. 16-Channel reader&writer Module Introduction:

The IoTRHA RHA-500-RC016 is a UHF RFID reader & writer module designed with a high-performance UHF dedicated RF chip, Impinj R2000. Utilizing the dynamic Q algorithm and data model constructed by the American company Impinj, it incorporates our proprietary “Adaptive Dynamic Q Anti-collision Algorithm V3.0”. This algorithm is applied to all our UHF RFID reader & writer modules, significantly improving multi-tag reading performance compared to similar market modules. The module supports 16 RF SMA antenna ports, enabling the connection of up to 16 antennas for real-time inventory. The module's output power ranges from 0 to 33dBm, with a long reading distance: stable identification at over 20 meters with a 9dBi circularly polarized antenna and over 30 meters with a 12dBi circularly polarized antenna.

The IoTRHA RHA-500-RC016 UHF RFID reader & writer module series is suitable for various applications requiring antenna identification and reading, such as access control channels, smart cabinets, high-quality consumable cabinets, tool cabinets, apparel channel machines, and file cabinets.

2. Key Selling Points:-

• Proprietary core anti-collision algorithm
• Designed based on Impinj R2000 dynamic Q algorithm
• Fully supports electronic tags compliant with EPC Global UHF Class 1 Gen 2 / ISO 18000-6C standards
• Operating frequency: 865MHz～868MHz / 902～928MHz, 860MHz～960MHz (customizable)
• Dual-CPU design
• Maximum output power up to 33dBm
• 16 RF SMA antenna ports, enabling real-time inventory with 16 antennas
• Excellent heat dissipation design

3. Key Performance:

• Core Chip: Uses the high-end UHF dedicated Impinj R2000 chip.
• High-performance Multi-tag Recognition Algorithm: Based on Impinj’s dynamic Q algorithm and data model, our proprietary “Adaptive Dynamic Q Anti-collision Algorithm V3.0” significantly enhances multi-tag reading performance.
• Few-tag Optimization Algorithm: Designed for applications with a small number of tags, offering extremely fast tag response speed.
• High Power Output Capability: Utilizes a PA chip with higher amplification output capacity, with a maximum output power of 35dBm. It maintains linearity at 33dBm output, achieving greater recognition distances and activating less sensitive tags in specific applications.
• Dual-CPU Architecture: The R2000 chip handles tag polling, while the CPU manages data. Tag polling and data transmission run in parallel, significantly improving overall performance.
• High-speed 16-antenna Polling: High-speed polling for 16 antenna ports, with a minimum polling time of 50ms per antenna. Each antenna's polling time can be individually configured.
• Excellent Tag Reading Performance: The module offers ultra-low receive sensitivity and high amplification output. Stable identification distance exceeds 20 meters with a 9dBi circularly polarized antenna and 30 meters with a 12dBi circularly polarized antenna.
• Antenna Connection Detection: Integrated physical connection detection circuit for quick and accurate detection of antenna connection status at the module ports.
• RF Power Amplifier PA Protection: Built-in forward and reverse power detection function protects the PA from being damaged in open circuit output conditions.
• Built-in High-precision Temperature Sensor: Monitors the system's operating temperature accurately in real time.
• Efficient Heat Dissipation Design: All heat-generating components have a thermal structure. The module's bottom features a large heat sink contact area with high thermal conductivity silicone grease.
• High Stability Assurance: Operates 24/7 without crashing, with minimal performance impact from external factors like casing and electromagnetic environment. Designed for wide temperature ranges with low temperature drift coefficient, using high-quality electronic components to ensure stable parameters.
• Simple and Efficient Hardware and Software Interface: Single power supply, no need for external tantalum capacitors, the module operates normally with a simple peripheral circuit.

4. Application Scenarios:Vehicle management, personnel management, logistics and warehouse management, marathon timing, library management, automated production line management.

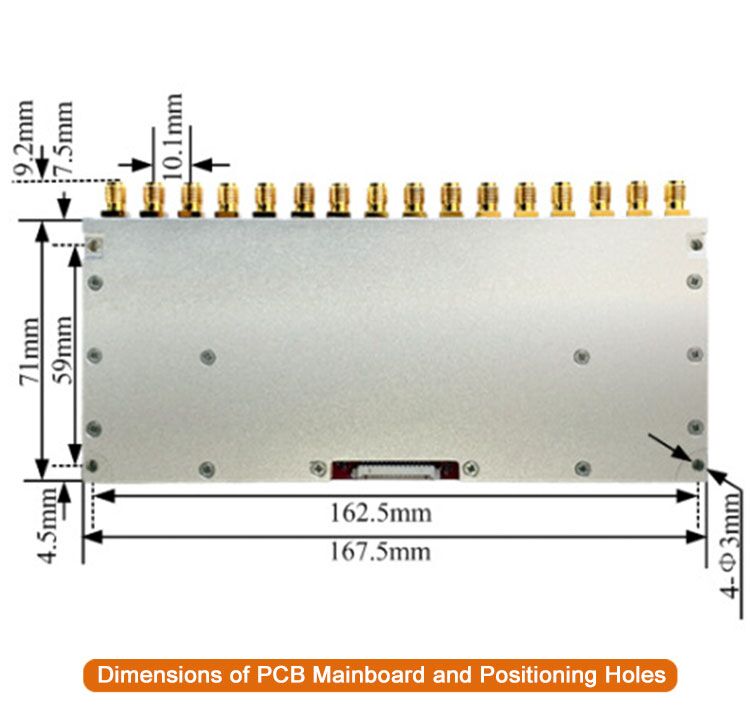

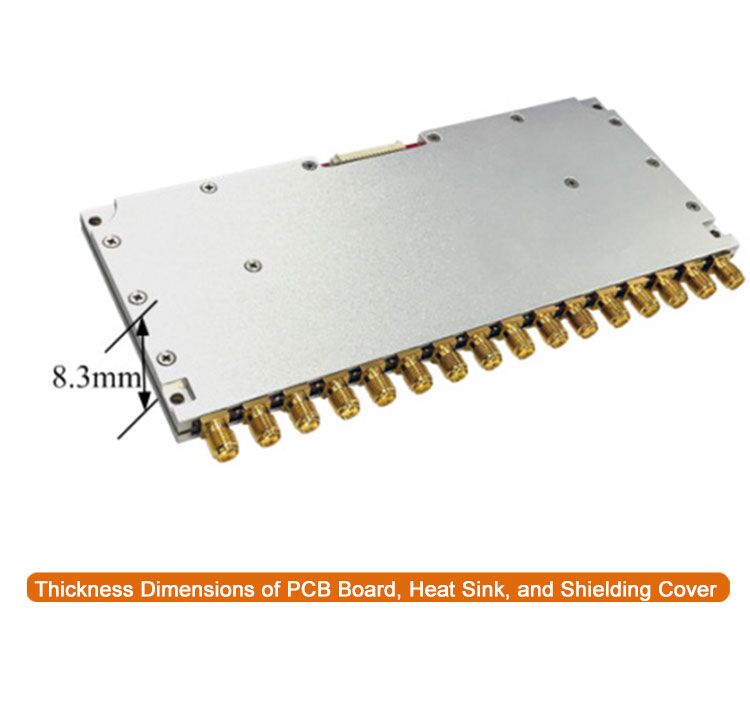

5. Reader&Writer Module Product Specifications:

• Notes:Avoid full load operation when measured temperature exceeds 60°C.
• Use a heat sink for continuous full-load operation.
• Do not exceed a power supply voltage of 5V to avoid damaging the internal protection circuit.
• Be cautious when setting RF output power above 30dBm due to increased peak current and temperature rise.

5. Connector Pin Definitions (1.27mm Pitch)
