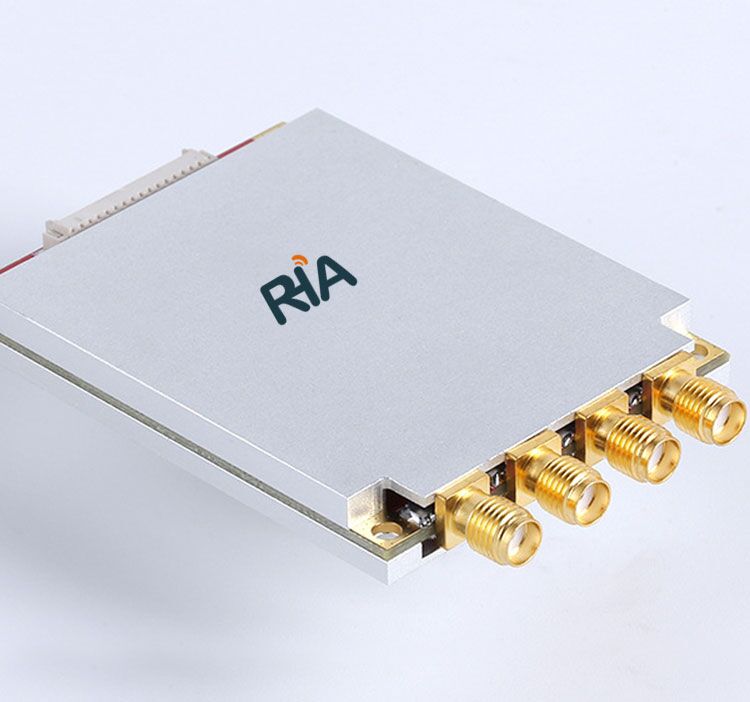

IoTRHA RHA-500-RC04 UHF RFID Reader & Writer 4- Channel Module

Overview:

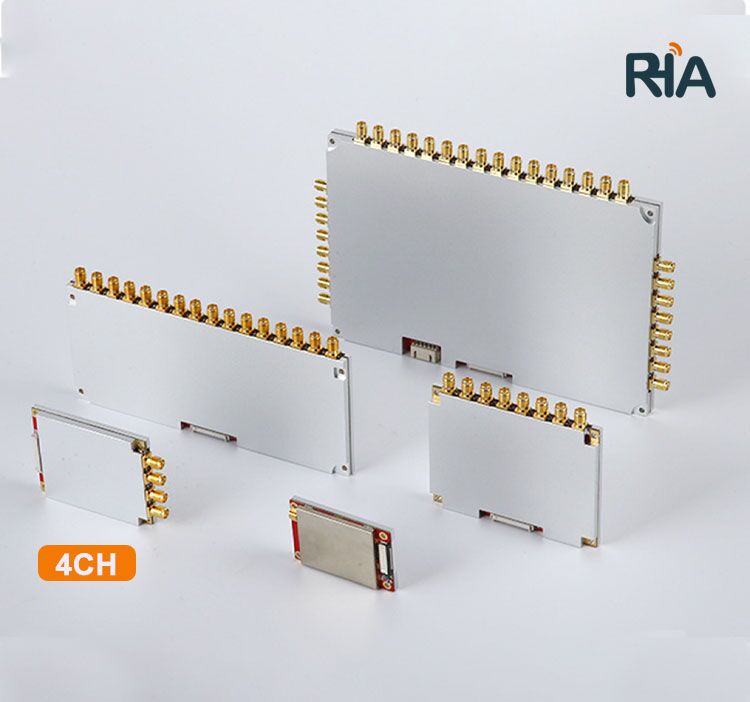

The IoTRHA UHF RFID reader&writer module series includes single/4/8/16/32 channels. These products are designed based on the high-performance Impinj R2000 UHF RFID chip. Utilizing the dynamic Q algorithm from Impinj and our independently developed "Adaptive Dynamic Q Anti-Collision Algorithm V3.0," we have significantly improved multi-tag reading performance. The more tags, the more evident the improvement. The module offers an output power range of 0-33dBm, with a stable reading distance of over 20 meters using a 9dBi circularly polarized antenna and over 30 meters with a 12dBi circularly polarized antenna. The IoTRHA UHF RFID reader&writer module series can be applied to UHF handheld devices, integrated machines, access control channels, smart cabinets, high-quality consumable cabinets, tool cabinets, clothing channels, archive cabinets, and other applications requiring antenna identification and reading.

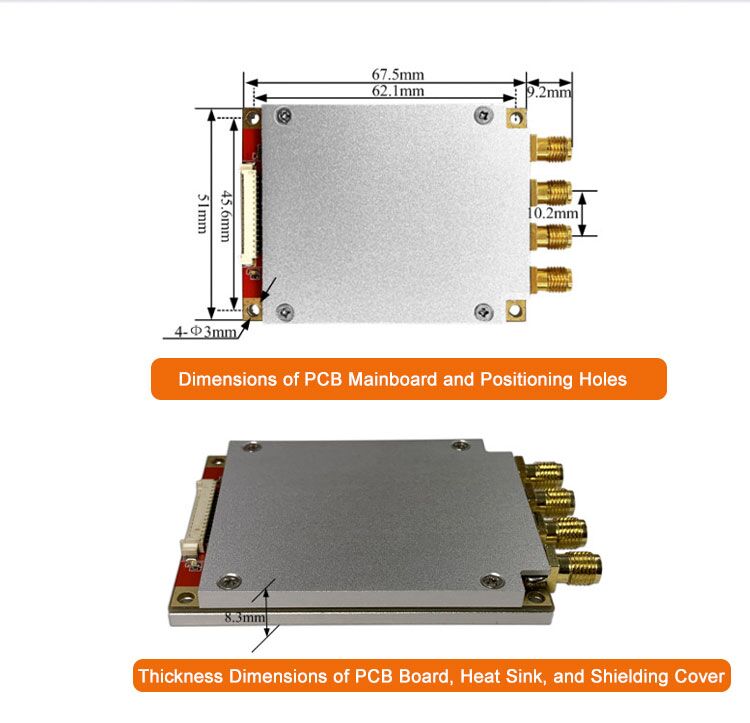

1. Four-Channel reader&writer Module Introduction:

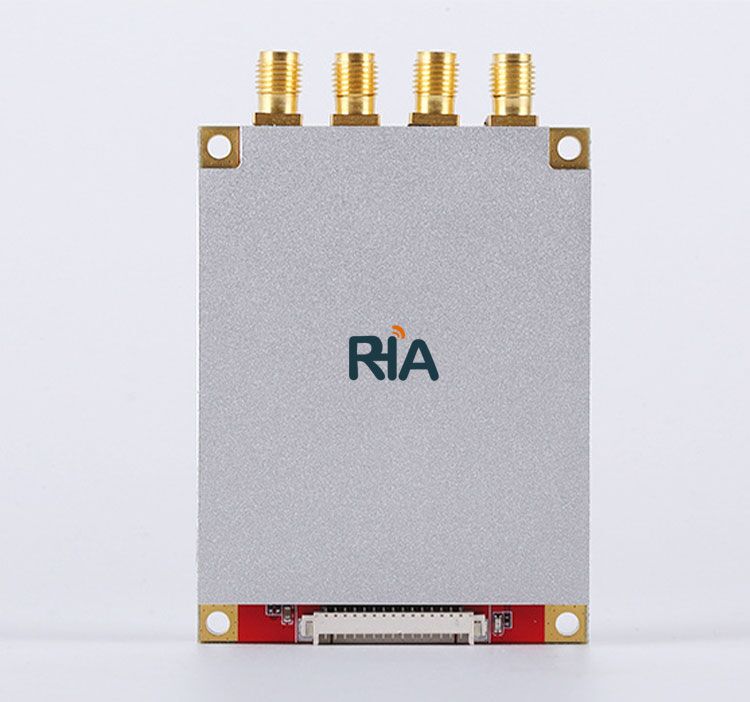

The IoTRHA RHA-500-RC04 UHF RFID reader & writer 4-channel module is designed based on the high-performance UHF-specific RF chip, Impinj R2000. Utilizing Impinj's dynamic Q algorithm and constructed data model, we have independently developed the "Adaptive Dynamic Q Anti-collision Algorithm V3.0" and integrated it into all our self-developed UHF RFID reader & writer module products. Compared to similar modules on the market, our modules, which adopt Impinj's dynamic Q algorithm, demonstrate significantly improved multi-tag reading performance, with the differences becoming more pronounced as the number of tags increases. The module features 4 RF SMA antenna connection ports, allowing simultaneous connection to 4 antennas for real-time cyclic inventory. The module's output power range is 0~33dBm, and it offers a considerable tag reading distance, with a stable identification range of over 20 meters using a 9dBi circularly polarized antenna and over 30 meters with a 12dBi circularly polarized antenna.

The IoTRHA RHA-500-RC04 UHF RFID reader & writer module series is suitable for applications requiring antenna identification and reading, such as access control channels, smart cabinets, high-quality consumables cabinets, tool cabinets, apparel passage machines, and archive cabinets.

2. Key Selling Points:-

• Independent Core Anti-collision Algorithm: Innovative "Adaptive Dynamic Q Anti-collision Algorithm V3.0"
• Based on Impinj R2000 Chip: High performance utilizing Impinj's dynamic Q algorithm
• Compliance: Fully supports EPC Global UHF Class 1 Gen 2 / ISO 18000-6C standard tags
• Operating Frequency: 865MHz～868MHz / 902～928MHz, 860MHz～960MHz (customizable)
• Dual CPU Design: Efficient processing and data management
• Maximum Output Power: Up to 33dBm
• Multiple Antenna Ports: 4 RF SMA antenna ports, enabling simultaneous connection and real-time cyclic inventory
• Excellent Heat Dissipation Design

3. Key Performance:

• Core Chip: Based on the high-performance Impinj R2000 chip
• High-performance Multi-tag Identification Algorithm: Enhanced performance with more tags
• Optimized for Few Tags: High-speed response for fewer tags
• High Power Output: PA chip supports up to 35dBm, ensuring long-range identification and activation of weaker tags
• Dual CPU Architecture: R2000 chip handles tag polling, CPU manages data, improving overall performance
• High-speed Antenna Polling: Minimum polling time of 50ms per antenna, configurable individually
• Superior Tag Reading Performance: Low reception sensitivity and high output capability
• Antenna Connection Detection: Physical connection detection for all antenna ports
• PA Protection: Forward and reverse power detection to prevent damage when antennas are disconnected
• High Precision Temperature Sensor: Real-time monitoring of system temperature
• Efficient Heat Dissipation: Thermal structures and high-conductivity thermal grease
• High Stability: 24/7 operation, low temperature drift, and high-quality electronic components
• Simple and Efficient Interfaces: Single power supply, no external tantalum capacitors needed

4. Application Scenarios:Vehicle management, personnel management, logistics and warehouse management, marathon timing, library management, automated production line management.

5. Reader&Writer Module Product Specifications:

• Notes:Avoid full load operation when measured temperature exceeds 60°C.
• Use a heat sink for continuous full-load operation.
• Do not exceed a power supply voltage of 5V to avoid damaging the internal protection circuit.
• Be cautious when setting RF output power above 30dBm due to increased peak current and temperature rise.

5. 1.25mm Pitch 15PIN Connector Pin Definitions
