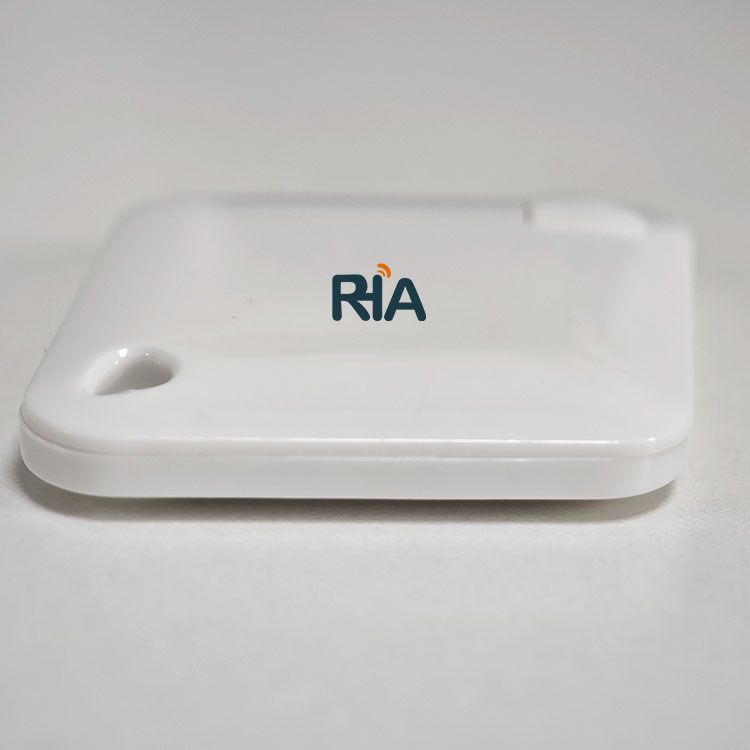

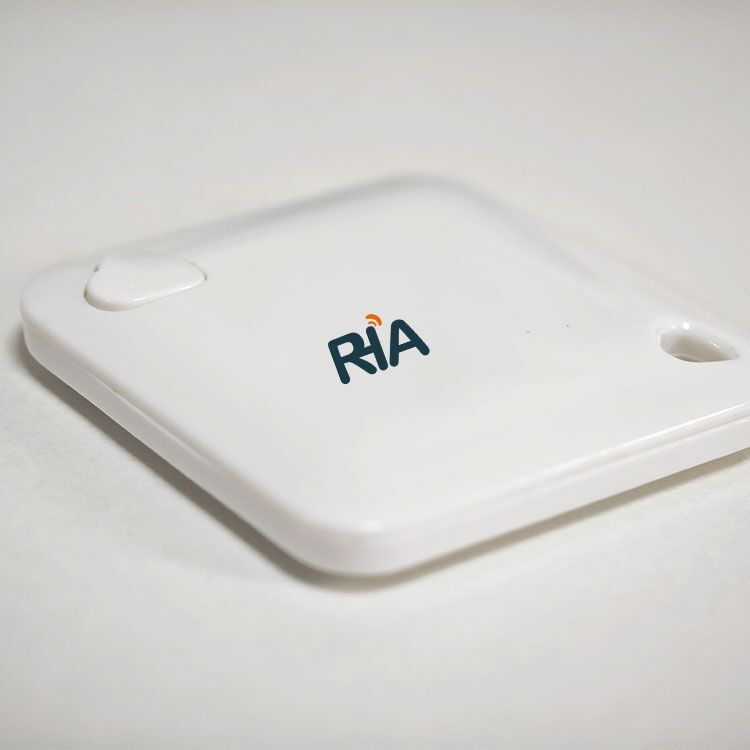

RHA-FG101AM Mini Size Button Bluetooth Beacon
The RHA-FG101AM is a Battery Button Beacon using the Dialog DA14531 BLE 5.1 chipset, with a maximum work range of over 150 meters. The RHA-FG101AM is a small BLE asset beacon equipped with a CR2032 battery, which can last for more than 2 years with a 1000ms broadcast interval setting.
The RHA-FG101AM supports standard iBeacon and Eddystone protocols, common broadcast protocols, and can open data protocols. It can be used with Bluetooth gateways and is widely applicable in item tracking, asset management, and other industries.
Product Parameters:
Physical Parameters:
| Parameter | Details |
| Model | RHA-FG101AM |
| Material | ABS |
| Color | White (support customization) |
| Dimensions | 46 x 41 x 6 mm |
| Battery Type | CR2032 |
| Power Supply | 3V |
| Weight | 8g |
BLE Parameters:
| Parameter | Details |
| Bluetooth Version | BLE 5.1 |
| Transmit Power | -19.5 ~ +2.5 dBm (Default 0 dBm) |
| Broadcast Interval | 100 ms ~ 10000 ms (Default 1000 ms) |
| Max Work Range | 150 m |
| Pin Code Connection | Support (Default 123456) |
| Work System | iOS 7.0+; Android 4.3+ |
Electrical Parameters:
| Parameter | Details |
| Battery Model | CR2032 |
| Battery Capacity | 200 mAh |
| Work Time | 2 years (0 dB/1s) |
Others:
| Parameter | Details |
| Working Environment | Operating temperature: -20℃ ~ +60℃ |
| Storage temperature: -20℃ ~ +85℃ | |
| Working humidity: 10% ~ 90% Non-condensing | |
| Storage humidity: 5% ~ 90% Non-condensing |
