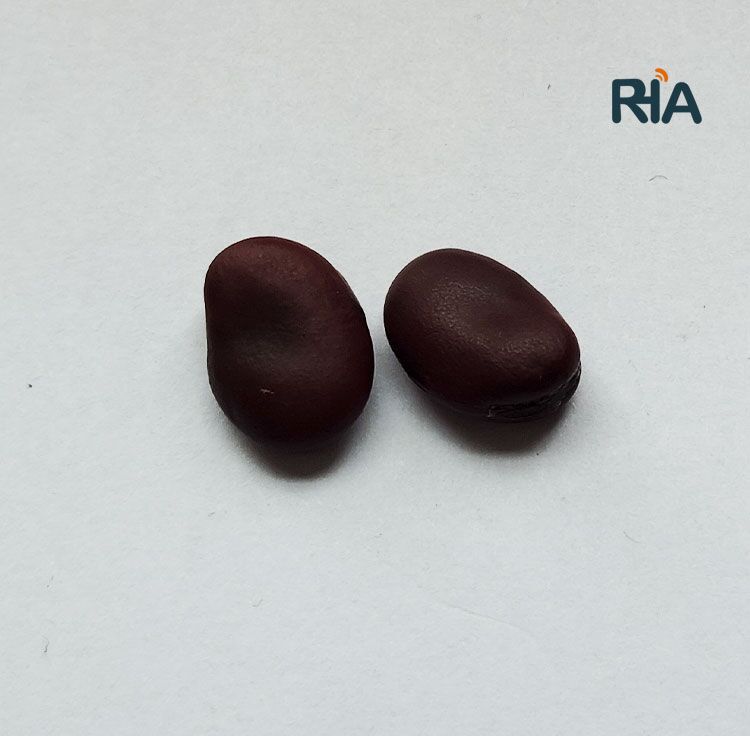

RFID Imitation Bean Tags feature an ultra-small IC tag measuring 0.37*0.28*0.1mm, making them easy to integrate into mini imitation beans to achieve confidentiality, tracelessness, and embedding requirements.
Product Features:
Communication Standard: RFID Imitation Bean Tags support passive RFID communication, compliant with ISM UHF band, EPC Class1 Gen2, or ISO 18000-6C standards.
EEPROM Memory: TID: 64 bits; EPC: 96 bits.
Reading Distance: Effective reading distance is 25mm ≤ D < 1m, with customization available.
Integrated Solution: Offers an integrated solution including RFID Imitation Bean Tags, RFID writer/reader, and data server.
IoTRHA's solution provides high confidentiality, traceless tag embedding, and supports proprietary protocols, ensuring that no third-party RFID reader can identify or read the RFID tag information.
RFID Imitation Bean Tags can be applied in various entertainment areas.
Specifications:
| Model | RHA-SBBT-14 |
| Tag Type | EEPROM |
| Appearance | Simulated broad bean |
| Frequency Range | UHF 860~960MHz |
| Communication Protocol | EPC C1G2 (EPCglobal Class 1 Generation 2) |
| Storage Capacity | TID: 64 bit (non-rewritable); EPC: 96 bit (Rewritable) |
| Communication Distance | 25mm≤D <1m, accept customization |
| Working Temperature | -30°C ~80°C |
| Storage Temperature | -15°C ~55°C |
