Small Size BLE 5.1 Bluetooth Module Low Power Consumption for Health and Medical Devices

RHA-BT107Z is a BLE 5.1 module independently developed by IoTRHA. It features a small size, ultra-low power consumption, supports both master and slave modes, multiple connections, and a data transfer rate of up to 60KB/s. It is customizable and can be applied in smart home, health and medical, automotive electronics, and other fields.

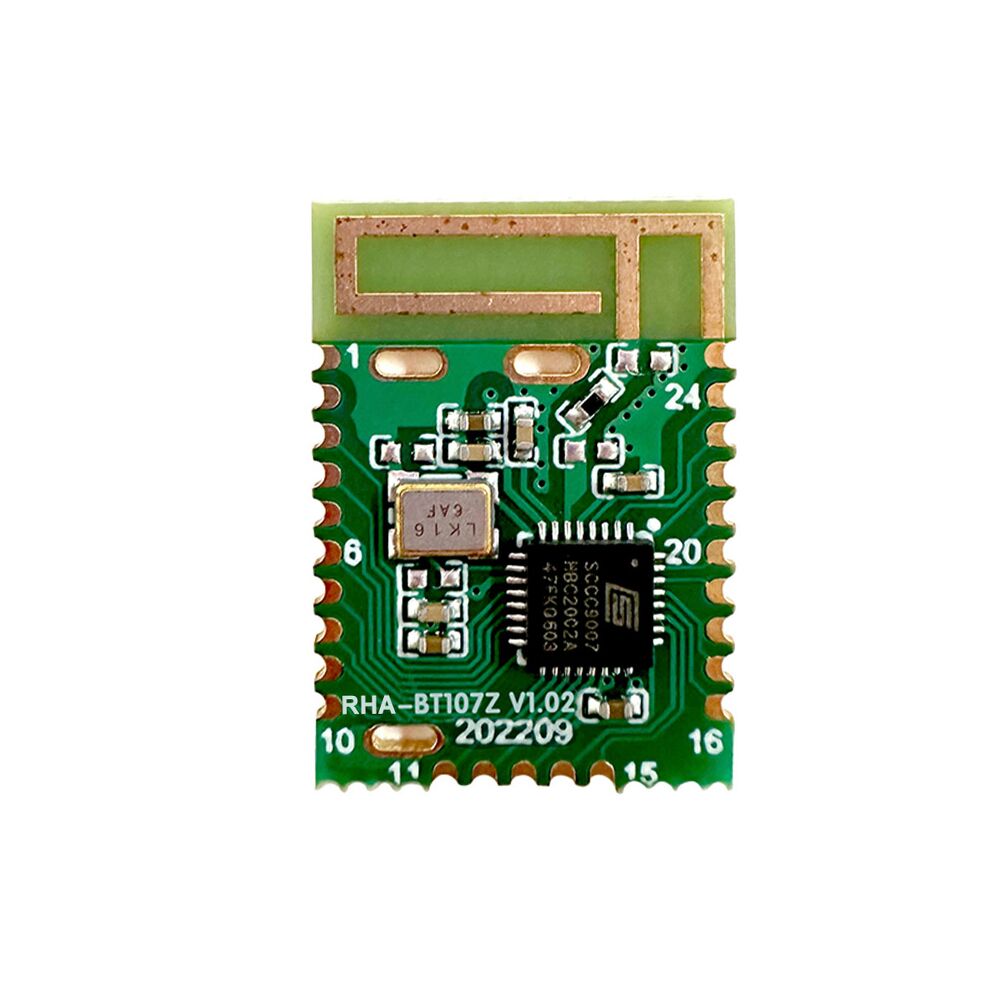

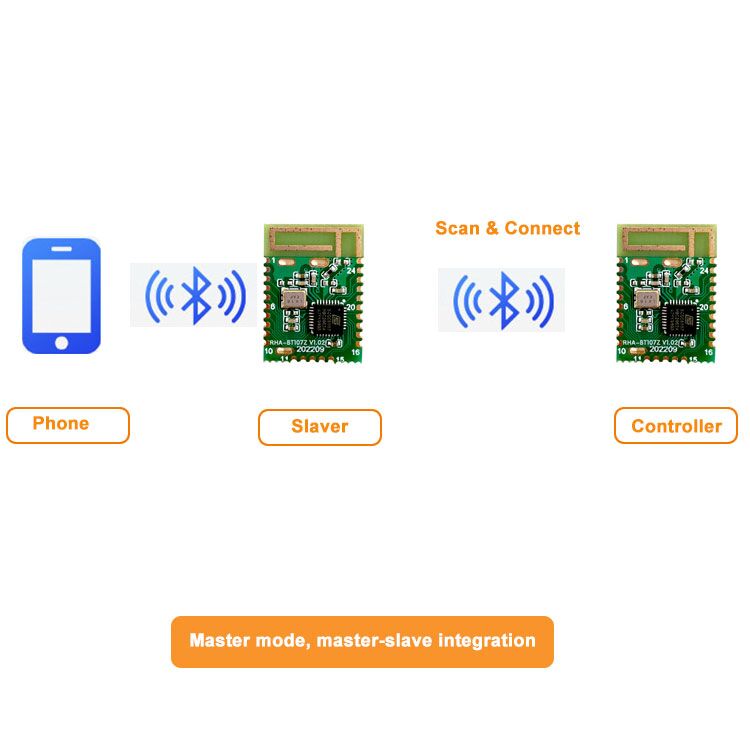

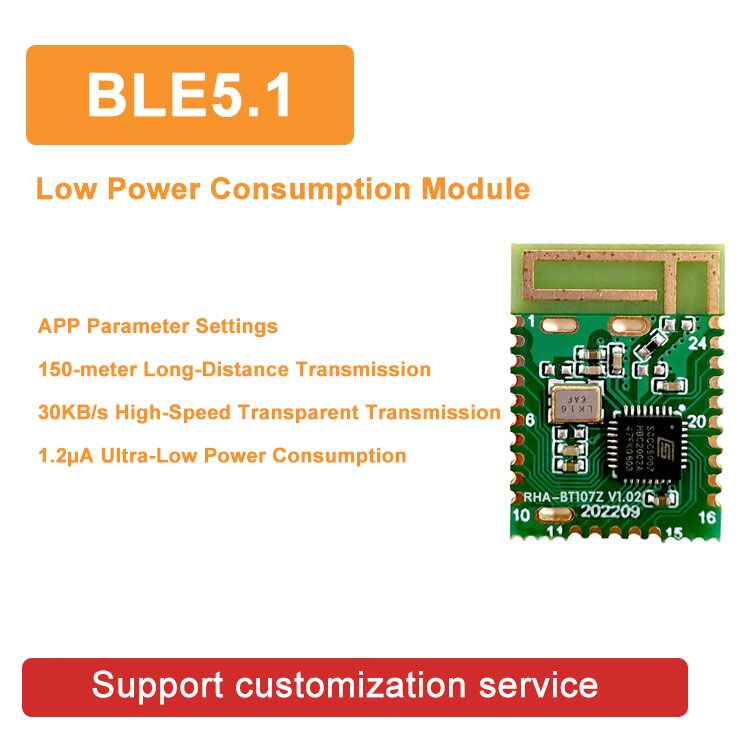

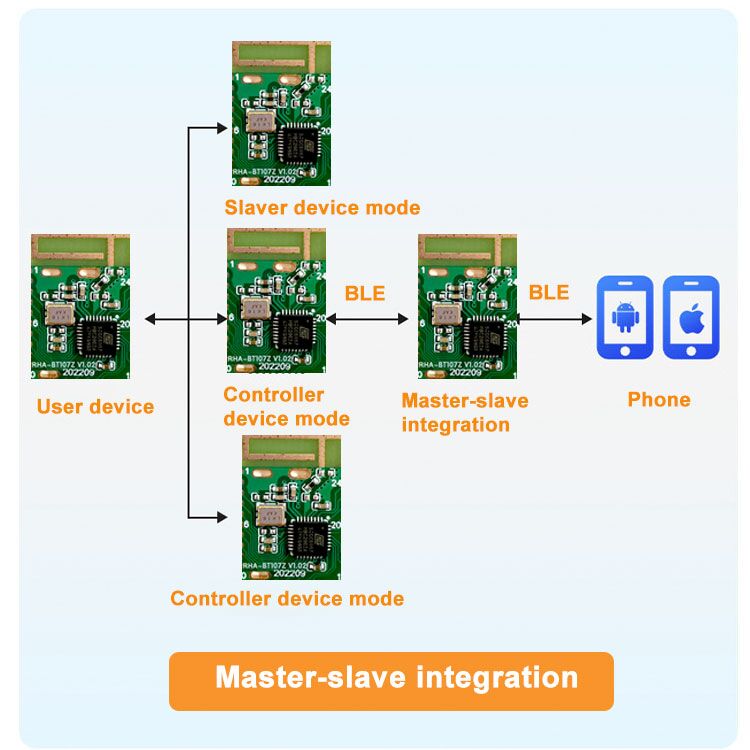

RHA-BT107Z is a high-performance BLE 5.1 SoC communication module, primarily used in networking, data transmission, and positioning within the BLE domain. It is a high-performance, low-power multi-protocol 2.4GHz SoC communication module, supporting low-power Bluetooth 5.1 and DetMesh. It supports star networks, mesh networks, and dynamic ad-hoc networks. When embedded with the DetMesh network protocol, each RHA-BT107Z supports master, slave, or master-slave modes, enabling flexible network joining and leaving, and supports multi-protocol operation with time-division and frequency-division multiplexing across different network layers.

RHA-BT107Z has extremely low active RF and MCU current and low power modes, supporting deep sleep and shutdown modes with various wake-up methods. These features ensure excellent battery life, making it suitable for small button battery power supply and energy-harvesting applications.

The BLE 5.1 Bluetooth Module includes a 32-bit high-performance microcontroller unit and a 12-bit high-precision SAR ADC, integrating a complete RF system and on-chip DC/DC converter. It has a built-in temperature sensor and rich peripheral resources, including DMA, watchdog timer, system tick timer, and various communication interfaces. The chip also has a floating-point unit for fast floating-point calculations.

Key Selling Points:

RF Section

* 2.4GHz RF transceiver, compliant with BLE 5.1 specification
* Receiver sensitivity: -99.5dBm @1Mbps, -96.8dBm @2Mbps
* Programmable output power up to 10dBm
* Supports single-port antenna output
* Suitable for various RF standard systems

Bluetooth BLE 5.1

* Supports Bluetooth SIG Mesh
* Supports proprietary protocols like DetMesh
* Supports 1Mbps/2Mbps
* Supports AoA positioning

Low Power Consumption
* RX mode: 4.6mA @3.3V
* TX mode: 4.4mA @3.3V 0dBm
* Deep sleep mode: 1.2uA (GPIO wake-up + RTC wake-up)
* Shutdown mode: 800nA (GPIO wake-up)

Microcontroller (MCU)

* 32-bit MCU core
* Clock speed up to 64MHz
* System SRAM up to 64KB
* Flash storage up to 512KB
* Supports two-wire debug protocol

Security and Computation Acceleration Unit

* ECC elliptic curve encryption (256)
* AES advanced encryption (256/192/128)
* T/DES advanced encryption (192/128/64)
* True random number generator (TRNG)
* Computation accelerator (CALC)

Analog to Digital Converter (ADC)

* 12-bit high-precision SAR ADC
* Supports up to 5 external channels
* Supports 3 internal channels
* Built-in temperature sensor
* 1/8, 1/4, 1/2, 3/8 VDD
* Internal 1.4V reference

Peripherals

* DMA: supports 8 multiplexed channels
* Watchdog timer: IWDG and WWDG
* Peripheral interconnection PIS
* System tick timer
* 2 I2C interfaces (supports bus arbitration)
* 2 SPI interfaces
* 3 UARTs (supports ISO7816, LIN, IrDA, etc.)
* 2 PDM interfaces, supports digital MIC
* 1 I2S interface
* Supports up to 21 general-purpose I/Os

Applications:

Industrial
* Low-power wireless sensor networks/gateways

Smart Grid and Automatic Meter Reading
* Water meters, gas meters, and electricity meters/heat distribution meters

Real-Time Location
* Indoor AoA positioning/asset tracking

Computer Peripherals
* Keyboards/mice/joysticks/mobile game controllers

Wearables and Health Products
* Children's bracelets/hearing aids/smart clothing/sports equipment

Remote Control and Consumer Electronics
* Home appliances/vehicles/aircraft/lighting control/electronic scales

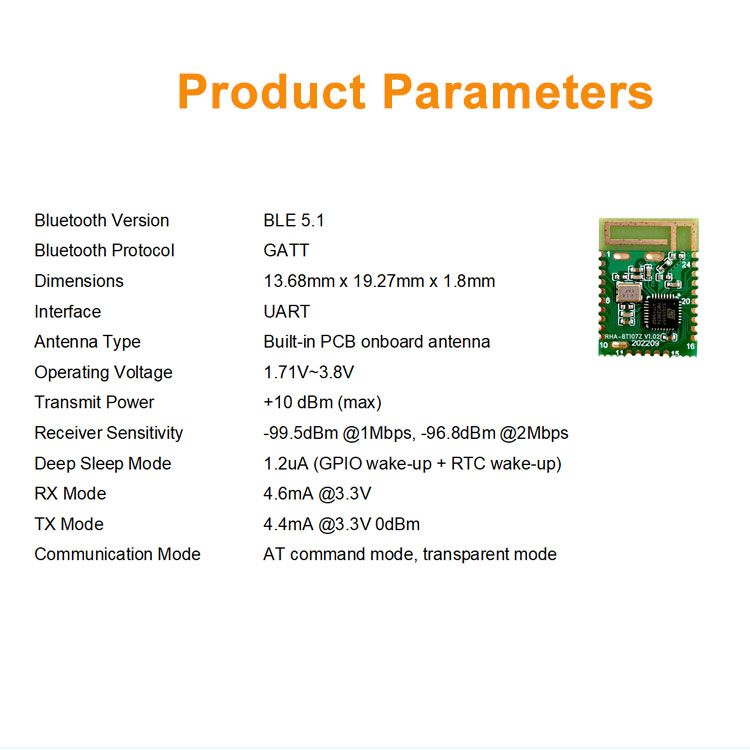

Product Parameters:
